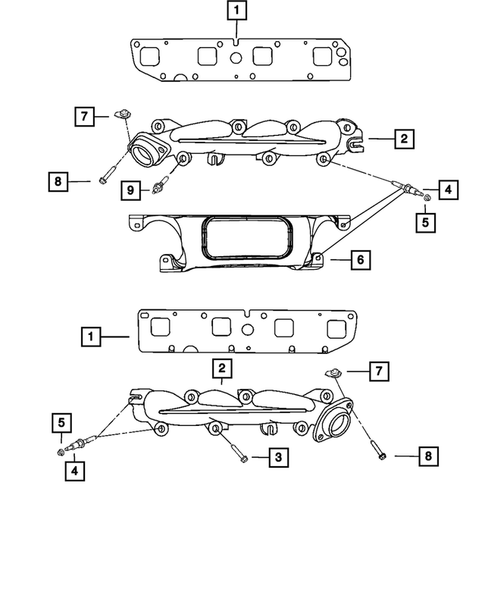

Manifolds and Vacuum Fittings for 2012 Ram 3500
No.
Part # / Description / Price
Price
1
Exhaust Manifold Gasket, Left Side
Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Left Side.
MSRP $40.75
$29.89
MSRP $40.75
$29.89
1
Exhaust Manifold Gasket, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Right Side. NOT Included With Long Block Engine Install Kit. Important note:pay close attention to up to and after dates and qty and size for bolts and studs.
MSRP $40.75
$29.89
MSRP $40.75
$29.89
2
Exhaust Manifold, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Nine (9) Hole Type Use Up To 03/05/2018. Left Side. Use For 03/05/2018 And After. Use For 03/05/2018 And Later.
2
Exhaust Manifold, Left Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Nine (9) Hole Type Use Up To 03/05/2018. Left Side. Use For 03/05/2018 And After. Use For 03/05/2018 And Later.
MSRP $58.80
$43.05
MSRP $58.80
$43.05
2
Exhaust Manifold, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Right Side.
MSRP $318.00
$233.70
MSRP $318.00
$233.70
3
Hex Flange Head Bolt, Mounting Right Side, Exhaust Manifold Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Use For 06/04/2018 And After. M8x1.25x48.50. Side. Use Up To 06/04/2018. This size bolt is only used for applications that use item 3 and 13 Tie Bars.. Right And Left. Exhaust Manifold To Cylibder Head. Exhaust Manifold To Cylinder Head Upper Middle.
MSRP $11.20
$8.00
MSRP $11.20
$8.00
4
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Side. Use Up To 06/04/2018. M8x1.25xm6x1x75.50. Exhaust Manifold To Cylibder Head.
MSRP $10.50
$7.63
MSRP $10.50
$7.63
5
Hex Flange Lock Nut, Mounting Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
MSRP $7.80
$5.60
MSRP $7.80
$5.60
6
Exhaust Manifold Shield Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Use Up To 06/04/2018. Right And Left Side. Gasoline Engine Manifold Only.
MSRP $29.35
$21.65
MSRP $29.35
$21.65
8
Hex Flange Head Bolt, Mounting Mopar
Mopar Description: .375-16x2.50. Hot End to Manifold. Front Exhaust Pipe To Exhaust Manifold.
MSRP $24.60
$18.14
MSRP $24.60
$18.14
9
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: M8x1.25xm6x1.00x73.00. Side. M8x1.25xm6x1.00x75.50. Use Up To 06/04/2018. Corner. Exhaust Manifold To Cylibder Head.
MSRP $17.15
$12.48
MSRP $17.15
$12.48

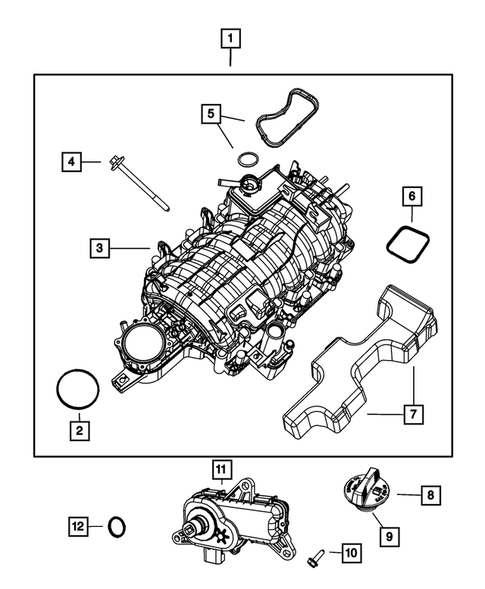

No.
Part # / Description / Price
Price
2
Throttle Body To Intake Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: NOT Included With Long Block Engine Install Kit. Intake Manifold To Cylinder Head.
MSRP $27.15
$19.80
MSRP $27.15
$19.80
4
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: 68190715AA,AB Supersede To 68190715AC Intake Manifold Kit. Item 3 Ball Stud & Item 4 Bolts Are No Longer Included & Must Be Ordered Seperate. Intake Manifold To Cylinder Heads. M6x1.00x81.00.
MSRP $9.40
$6.83
MSRP $9.40
$6.83
5
PCV Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: NOT Included With Long Block Engine Install Kit. System. Large O Ring Small O Ring Is Serviced With PCV Valve Only.
MSRP $7.45
$5.47
MSRP $7.45
$5.47
5
PCV Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Rectangle. Rectangile. System. Square. Large, Small Seal Is Seviced With The Valve Only. NOT Included With Long Block Engine Install Kit or Upper Engine Gasket Kit, Must Order Separate. Small Seal Is Serviced With The Valve Only. On Manifold.
MSRP $24.35
$17.96
MSRP $24.35
$17.96
6
MSRP $13.60
$10.02
7
Engine Pad Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Round Pad In Rear Of Intake Manifold Is Serviced With Intake Manifold. Engine Valley. Round Pad In Rear Of Intake Manifold Serviced In Manifold Kit. Valley Cover.
MSRP $92.75
$68.27
MSRP $92.75
$68.27
8
Oil Filler Cap Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: With 5W20 Markings. Includes Oil Ring. Includes O-Ring.
MSRP $27.30
$19.93
MSRP $27.30
$19.93
9
O Ring Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: Serviced With Oil Filler Cap.
MSRP $12.50
$9.04
MSRP $12.50
$9.04
10
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: M5.74x1.81x21.50. Fuel Rail To Intake Manifold. Bracket To Intake Manifold. Intake Short Runner Valve To Intake Manifold. Intake Short Running Valve Actuator Valve To Intake Manifold.
MSRP $3.40
$2.40
MSRP $3.40
$2.40
11

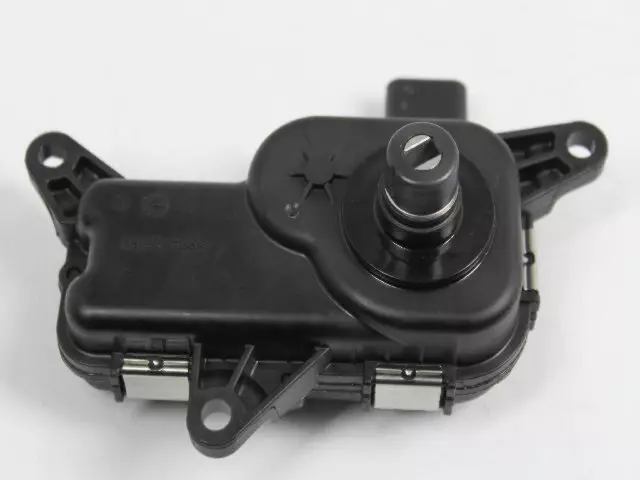

Intake Short Running Valve Actuator Mopar
Mopar Notes: Engines: 5.7L V8 HEMI VVT Engine.
Description: SHORT RUNNER VALVE
12
MSRP $6.20
$4.43
