Home 2011 Ram 1500 Big Horn 4.7L V8 - Flex Case, Extension, Oil Pan, and Indicator (Dipstick)

Case, Extension, Oil Pan, and Indicator (Dipstick) for 2011 Ram 1500

Case, Extension, Oil Pan, and Indicator (Dipstick) for 2011 Ram 1500 #2

Case, Extension, Oil Pan, and Indicator (Dipstick) for 2011 Ram 1500 #3

Case, Extension, Oil Pan, and Indicator (Dipstick) for 2011 Ram 1500 #4

Case, Extension, Oil Pan, and Indicator (Dipstick) for 2011 Ram 1500 #5

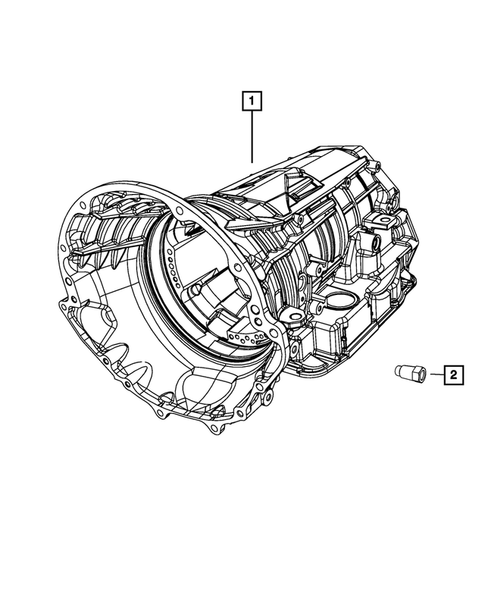

Case, Extension, Oil Pan, and Indicator (Dipstick) for 2011 Ram 1500 #6

No.

Part # / Description / Price

Price

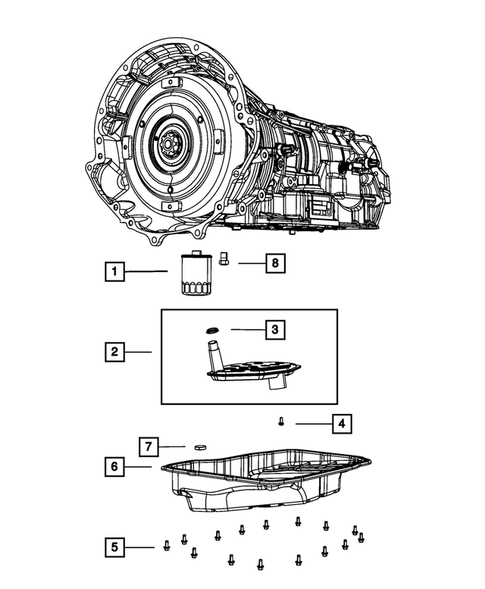

Transmission Oil Filter Package

5179267AD

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Cooler Return Filter.

MSRP $54.00

$39.67

MSRP $54.00

$39.67

Transmission Filter Kit

5013470AE

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: TRANSMISSION OIL

MSRP $74.25

$54.61

MSRP $74.25

$54.61

Sump Filter Seal

4799964AD

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $10.85

$7.93

MSRP $10.85

$7.93

Pan Head Screw

6503232

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M5 x 0.8 x 12.60. Accumulator Cover. Valve Body Detent. Fwd. Oil Filter To Transfer Plate. Sump Filter. Oil Filter to Transmission. Vavle Body Detent.

MSRP $1.75

$1.23

MSRP $1.75

$1.23

Hex Head Bolt

6102403AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M6x1.00x14. End Cover To Case. Oil Pan To Case. Valve Body Pan To Case.

MSRP $7.00

$5.17

MSRP $7.00

$5.17

Transmission Oil Pan

4736676AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $165.00

$118.82

MSRP $165.00

$118.82

Transmission Magnet

68207789AA

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Can be used with Oil Pans 52852912AA and 52852912AB. Use with Oil Pans 52852912AA or 52852912AB. After 1/27/2003.

MSRP $8.60

$6.21

MSRP $8.60

$6.21

Flow Control Valve

4799681

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: BY-Pass Valve. Filter By-Pass.

MSRP $22.95

$16.73

MSRP $22.95

$16.73

No.

Part # / Description / Price

Price

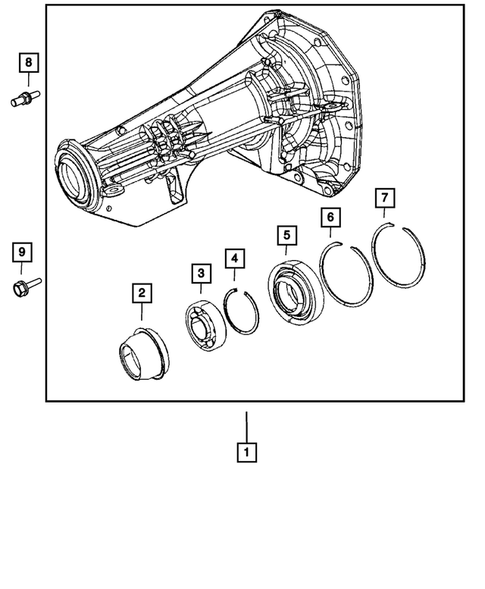

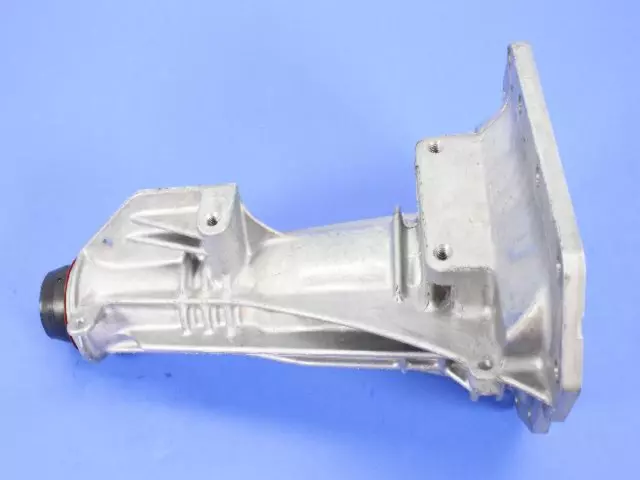

Transmission Rear Extension Housing

52120081AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Includes Output Shaft and Items 2 to 7. Includes: Output Shaft, Snap Ring, Bearing Input Gear, Bushing, Seal. Includes Output Shaft and Items #7 to # 12. Includes Output Shaft and Items #6 to # 11.

MSRP $1,165.00

$846.24

MSRP $1,165.00

$846.24

Output Shaft Seal

4531216AB

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Rear Extension Seal 2WD.

MSRP $52.30

$38.38

MSRP $52.30

$38.38

Output Shaft Bearing

2466224

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: 52105959aa. From 9/10/02. Rear.

View Details

Snap Ring

4461069

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Rear.

MSRP $11.55

$8.43

MSRP $11.55

$8.43

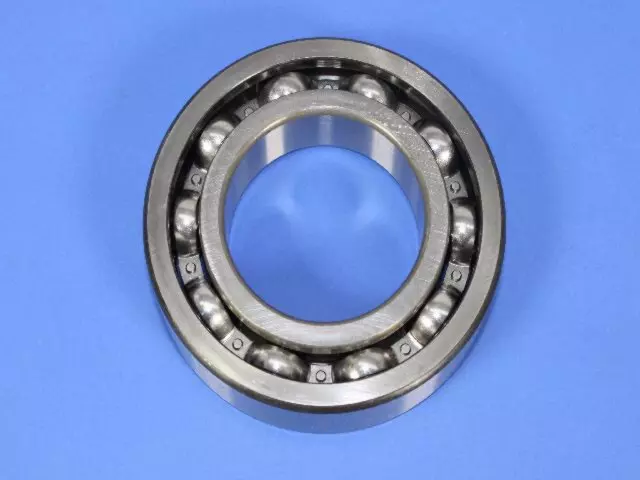

Input Gear Bearing

5086303AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Input Retainer to Hub Snap Ring.

MSRP $177.00

$129.15

MSRP $177.00

$129.15

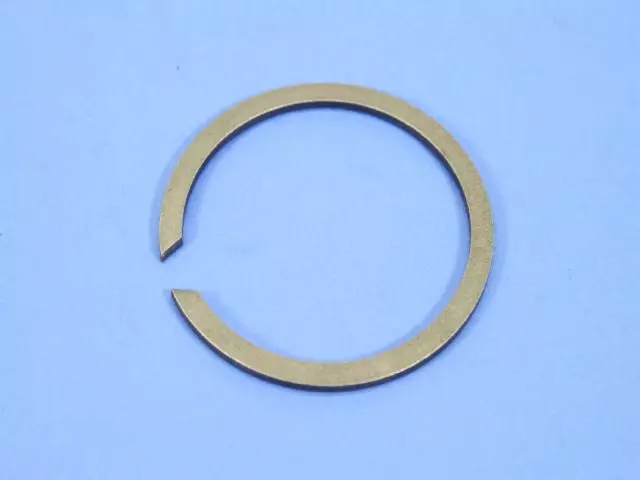

Snap Ring

5086314AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Front Bearing To Shaft.

MSRP $11.30

$8.24

MSRP $11.30

$8.24

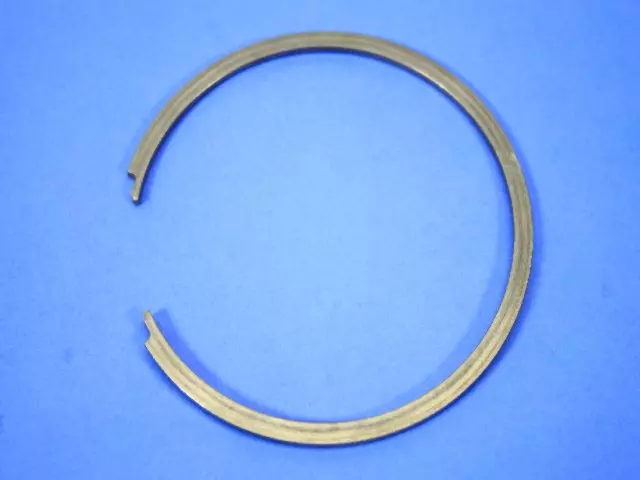

Snap Ring

5086304AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Front Bearing To Case.

MSRP $8.15

$5.90

MSRP $8.15

$5.90

Stud

6505064AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M10x1.5x62. Adapter to Case. Extension Housing to Case.

MSRP $6.95

$4.98

MSRP $6.95

$4.98

Hex Head Screw And Washer

6504774

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M10x1.5x37. Engine Mount To Bracket. Engine Mount To Cylinder Block. Extension Mounting. Extension To Case. Adapter to Transmission Case.

MSRP $7.80

$5.60

MSRP $7.80

$5.60

No.

Part # / Description / Price

Price

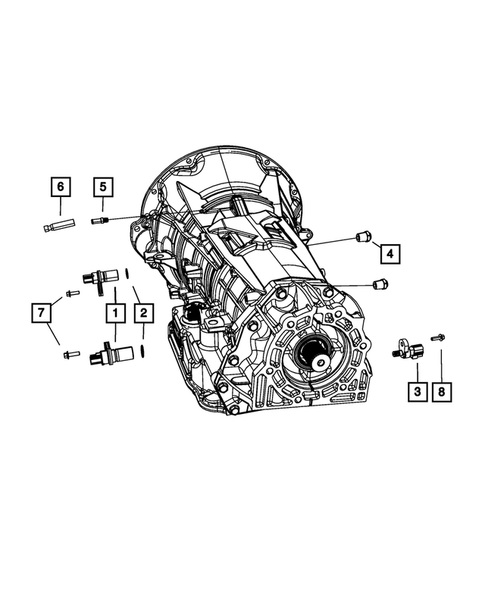

Transmission Input Speed Sensor

4799061AB

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Input and Output Speed Sensor.

MSRP $60.70

$44.77

MSRP $60.70

$44.77

O Ring

4799062

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Speed Sensor Oring. Transmission Input Speed Sensor. Engine Speed Sensor.

MSRP $10.10

$7.38

MSRP $10.10

$7.38

Pressure Sensor Transducer

4799758AF

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Transmission Temperature Thermister. Line Pressure.

MSRP $105.00

$76.81

MSRP $105.00

$76.81

Quick Connect Fitting Kit

52119547AA

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Cooler Line to Trans Case. Transmission Cooler Line To Transmission. Pressure. Return. Up to 07-17-2004.

MSRP $38.65

$28.47

MSRP $38.65

$28.47

Transmission Vent

4799861AB

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Nipple. In case.

MSRP $9.75

$7.13

MSRP $9.75

$7.13

Vent Tube

53032457AD

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Use After Build Date 05/19/2008.

MSRP $16.20

$11.81

MSRP $16.20

$11.81

Hex Head Bolt And Coned Washer

6101331

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M6x1.00x20. Amplfier Bracket Attaching. Speed Sensor Mounting. Input Speed Sensor. M6x1x20. Pressure Sensor. Camshaft. Fuel Rail To Intake Manifold.

MSRP $8.90

$6.52

MSRP $8.90

$6.52

No.

Part # / Description / Price

Price

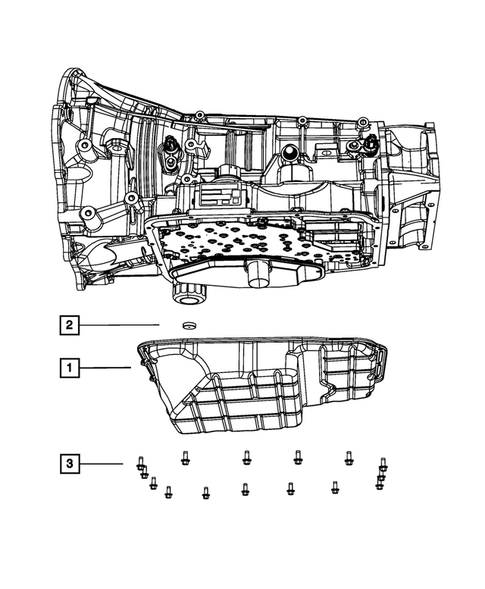

Transmission Oil Pan

4736676AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $165.00

$118.82

MSRP $165.00

$118.82

Transmission Magnet

68207789AA

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Can be used with Oil Pans 52852912AA and 52852912AB. Use with Oil Pans 52852912AA or 52852912AB. After 1/27/2003.

MSRP $8.60

$6.21

MSRP $8.60

$6.21

Hex Head Bolt

6102403AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M6x1.00x14. End Cover To Case. Oil Pan To Case. Valve Body Pan To Case.

MSRP $7.00

$5.17

MSRP $7.00

$5.17

No.

Part # / Description / Price

Price

Transfer Case Adapter

52107719AC

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $848.00

$626.07

MSRP $848.00

$626.07

Adapter Seal

52119498AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Included in Item 1. Rear Extension 2WD.

MSRP $39.55

$29.03

MSRP $39.55

$29.03

Input Seal

68161390AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $36.55

$26.81

MSRP $36.55

$26.81

Hex Head Screw And Washer

6504774

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M10x1.5x37. Engine Mount To Bracket. Engine Mount To Cylinder Block. Extension Mounting. Extension To Case. Adapter to Transmission Case.

MSRP $7.80

$5.60

MSRP $7.80

$5.60

Stud

6505064AA

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: M10x1.5x62. Adapter to Case. Extension Housing to Case.

MSRP $6.95

$4.98

MSRP $6.95

$4.98

No.

Part # / Description / Price

Price

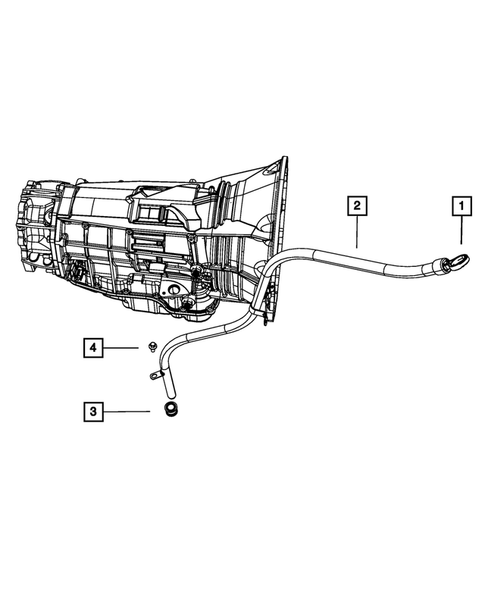

Transmission Fluid Level Indicator

53032518AC

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $33.75

$24.72

MSRP $33.75

$24.72

Transmission Oil Filler Tube

53032517AF

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

View Details

Grommet, Mounting

4810021AB

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: After [08/02/04]. Transmission Oil Filler Tube. Fill Tube Seal. Oil Filler Tube To Case.

MSRP $11.65

$8.55

MSRP $11.65

$8.55

Hex Head Screw And Washer, Mounting

6501979

Mopar

Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS. 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $8.60

$6.33

MSRP $8.60

$6.33

No.

Part # / Description / Price

Price

Transmission Case Package

5189883AC

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

MSRP $2,300.00

$1,678.95

MSRP $2,300.00

$1,678.95

Pressure Check Plug

6030035

Mopar

Notes: Engines: 4.7L V8 FFV ENGINE. 5.7L V8 HEMI MDS VCT Engine. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.

Description: Transmission Pressure.

MSRP $8.75

$6.40

MSRP $8.75

$6.40
