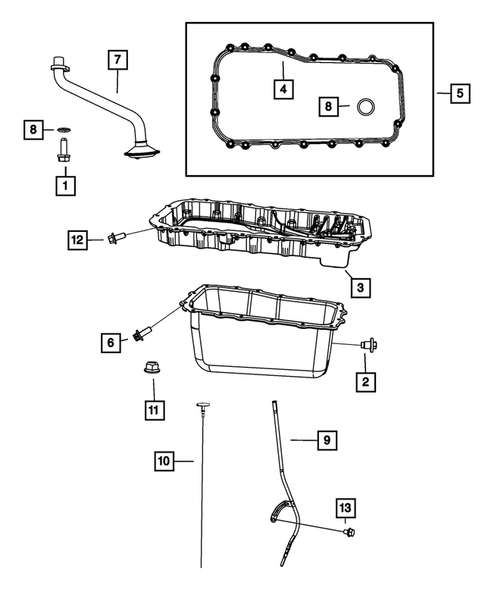

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2010 Chrysler Town & Country
No.
Part # / Description / Price
Price
1
Hex Head Screw And Washer
Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: M8x1.25x25.25. Oil Pickup Tube To Oil Pump. M8x1.25x25.00. Engine Oil Pick Up Tube To Engine Oil Pump. Oil Pickup Tube To Chain Case Cover.
MSRP $11.00
$8.06
MSRP $11.00
$8.06
2
Oil Drain Plug Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: [M18 x 1.0]. [M14x1.50x21.50]. Used Up To 05/22/2020. -NAM ( with Out Mexico).
MSRP $14.45
$10.46
MSRP $14.45
$10.46
3
Oil Pan Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: Includes Upper And Lower Pans.
MSRP $657.00
$479.70
MSRP $657.00
$479.70
4
Oil Pan Gasket Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Upper. Oil Pan Gasket Only.
MSRP $86.25
$63.47
MSRP $86.25
$63.47
5
Engine Oil Pan Gasket Package Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Includes Items 6 and 14. See Notes. Includes Pickup Tube Seal. Includes Items 6 and 13. Includes Gasket and Attaching Screws. Upper. Oil Pan Gasket And Oil Pickup Tube Seal. Includes Pan Gasket And Pick-up Tube O-Ring. Includes Items 4, 5. Includes Pan Gasket And Oil Pickup Tube O-Ring.
MSRP $86.95
$63.96
MSRP $86.95
$63.96
6
6 Lobe Recessed Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.8L V6 OHV ENGINE.
Description: [M6x15]. M6.0x1.00x14.00. [m6.0x1.0x14.0]. Lower Oil Pan To Upper Oil Pan.
8
Oil Pick Up Tube Seal Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
MSRP $10.85
$7.93
MSRP $10.85
$7.93
10
MSRP $34.85
$25.40
11
MSRP $9.35
$6.89
12
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Oil Pan To Cylinder Block [M6X1.00x24.00]. Upper Oil Pan To Cylinder Block.
MSRP $4.90
$3.51
MSRP $4.90
$3.51
13
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: M8x1.25x12.00. Oil Indicator Tube To Cylinder Block. M8. [m8x1.25x12.0].

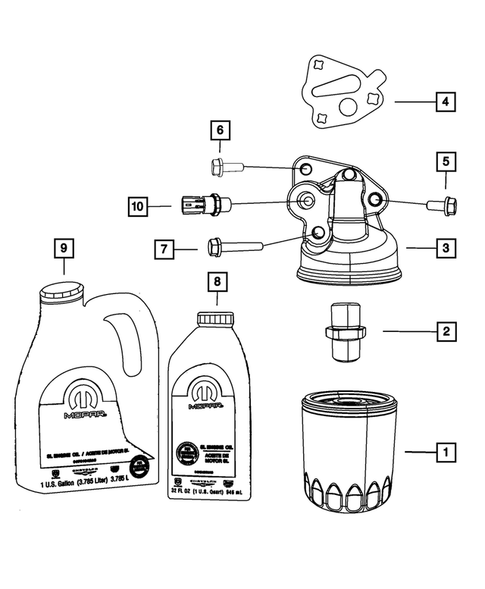

No.
Part # / Description / Price
Price
1
Engine Oil Filter Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: ENGINE OIL
MSRP $12.00
$8.86
MSRP $12.00
$8.86
2
Oil Filter Connector Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: OIL FILTER (4.0L) MJ-XJ
MSRP $17.00
$12.42
MSRP $17.00
$12.42
3
Oil Filter Adapter Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Includes Connector.
MSRP $133.00
$97.29
MSRP $133.00
$97.29
4
Oil Filter Adapter Gasket Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Built After 10-04-2004. O-Ring.
MSRP $8.60
$6.21
MSRP $8.60
$6.21
5
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Battery to Engine Ground. M10x1.5x115. Oil Filter Adapter To Cylinder Block [M10x1.50x25.00]. Drip Trough To Cylinder Block. Battery Negative To Ground. A/C Brace to Front Cover. Engine Ground Strap attaching. Secondary Oil Splash Guard To Cylinder Block. Battery ground wiring to block.
MSRP $5.15
$3.69
MSRP $5.15
$3.69
6
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
MSRP $5.05
$3.63
MSRP $5.05
$3.63
7
Hex Head Screw And Washer, Mounting Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Oil Filter Adapter To Cylinder Block [M8x1.25x50.00].
8
5w20 Engine Oil Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: MS-10797 [API SM ILSAC GF-4]. [32 Fluid Ounces] Minimum Ship Quantity Of 12. Quart. Ms-6395 [api sm ilsac gf-4]. MS-10797 [API SM ILSAC GF-4]. [132 Fluid Ounces] Minimum Ship Quanity Of 12.
8
5w20 Engine Oil 2 Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: MS-10797 [API SM ILSAC GF-4]. [32 Fluid Ounces] Minimum Ship Quantity Of 12. Quart. Ms-6395 [api sm ilsac gf-4]. MS-10797 [API SM ILSAC GF-4]. [132 Fluid Ounces] Minimum Ship Quanity Of 12.
MSRP $10.00
$7.38
MSRP $10.00
$7.38
9
5w20 Engine Oil 2 Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: MS-10797 [API SM ILSAC GF-4]. [128 Fluid Ounces] Minimum Ship Quanity Of 3. MS-10797 [API SM ILSAC GF-4]. [125 Fluid Ounces] Minimum Ship Quanity Of 4. 5 Quart Bottle (160 Fluid Ounces) Minimum Ship Quantity Of 4 Bottles. MS-10797 [API SM ILSAC GF-4]. [128 Fluid Ounces] Minimum Ship Quantity Of 4. Gallon. Ms-6395 [api sm ilsac gf-4].
MSRP $48.42
$35.73
MSRP $48.42
$35.73
10
Oil Pressure Switch Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Includes Valve and Quick Connect. 4792355 Serviced in Valve Pkg. Contains Valve and Quick Connect.
MSRP $55.60
$40.90
MSRP $55.60
$40.90
2 This part contains hazardous materials. Extra shipping costs apply.

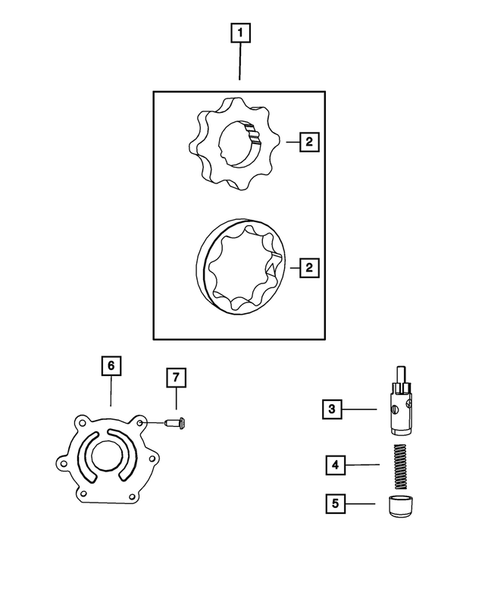

No.
Part # / Description / Price
Price
1
Oil Pump Rotor Set Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
Description: Includes Inner And Outer Rotor. Includes Items 9,10. Includes Items 10,11.
MSRP $127.00
$91.76
MSRP $127.00
$91.76
4
Oil Pressure Relief Valve Spring Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE.
MSRP $6.95
$4.98
MSRP $6.95
$4.98
7
Torx Head Screw, Mounting Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: [M6x1.0x15.0]. Oil Pump Cover Plate To Chain Case Cover. Oil Pump Cover To Cylinder Block. Oil Pump Back cover To Oil Pump.
