Wiring-Headlamp to Dash for 2005 Dodge Sprinter 2500

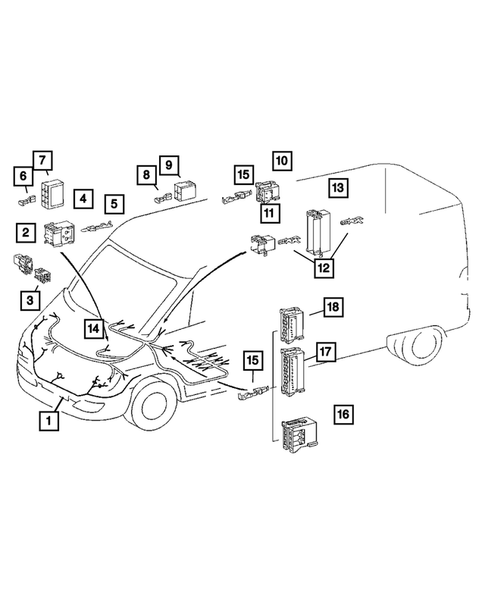

Wiring-Headlamp to Dash for 2005 Dodge Sprinter 2500 #0

1

10

11

12

13

14

15

15

16

17

18

2

3

4

5

6

7

8

9

No.

Part # / Description / Price

Price

1

5133398AB - Electrical: Headlamp Wiring for Dodge: Sprinter 2500, Sprinter 3500 Image

Headlamp Wiring

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Repair Harness For Front Lamps. Lamp Sockets Are Not Serviced.

1

5133398AA - Electrical: Headlamp Wiring for Dodge: Sprinter 2500, Sprinter 3500 Image

Headlamp Wiring

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Repair Harness For Front Lamps. Lamp Sockets Are Not Serviced.

2

5133397AA - Electrical: 4 Way Male Insulator for Dodge: Sprinter 2500, Sprinter 3500 Image

4 Way Male Insulator

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

3

5133396AA - Electrical: Wiring Connector for Dodge: Sprinter 2500, Sprinter 3500 Image

Wiring Connector

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Engine Harness To Chasis Harness.

4

5133327AA - Electrical: 6 Way Male Insulator for Dodge: Sprinter 2500, Sprinter 3500 Image

6 Way Male Insulator

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

5

5103909AA - Electrical: Male Terminal for Dodge: Sprinter 2500, Sprinter 3500 Image

Male Terminal

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: NONE

6

5133359AA - Electrical: Female Terminal for Dodge: Sprinter 2500, Sprinter 3500 Image

Female Terminal

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: X85/22]. E46/1, e46/2, e46/3]. [0.5 - 1.0 mm2]. Outlet.

7

5103752AA - Electrical: Connector for Dodge: Sprinter 2500, Sprinter 3500 Image

Connector

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

8

5133360AA - Electrical: Female Terminal for Dodge: Sprinter 2500, Sprinter 3500 Image

Female Terminal

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [k100/1].

9

5103753AA - Electrical: Connector for Dodge: Sprinter 2500, Sprinter 3500 Image

Connector

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Engine Harness To Chasis Harness.

10

5120785AA - Electrical: Connector for Dodge: Sprinter 2500, Sprinter 3500 Image

Connector

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

11

5120791AA - Electrical: Connector for Dodge: Sprinter 2500, Sprinter 3500 Image

Connector

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

12

5133377AA - Electrical: Male Terminal for Dodge: Sprinter 2500, Sprinter 3500 Image

Male Terminal

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Small.

13

5120794AA - Electrical: Connector for Dodge: Sprinter 2500, Sprinter 3500 Image

Connector

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

14

5114935AA - Electrical: Headlamp To Dash Wiring for Dodge: Sprinter 2500, Sprinter 3500 Image

Headlamp To Dash Wiring

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

15

5103881AA - Electrical: Terminal for Chrysler: Crossfire | Dodge: Sprinter 2500, Sprinter 3500 Image

Terminal

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Contact Spring [1.5-2.5 MM]. [1.5-2.5 mm2 jpt. H4/25].

16

5120796AA - Electrical: Connector for Dodge: Sprinter 2500, Sprinter 3500 Image

Connector

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

17

5120789AA - Electrical: Connector for Dodge: Sprinter 2500, Sprinter 3500 Image

Connector

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

18

5120788AA - Electrical: Connector for Dodge: Sprinter 2500, Sprinter 3500 Image

Connector

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.
