Brake Lines and Hoses for 2004 Dodge Sprinter 2500

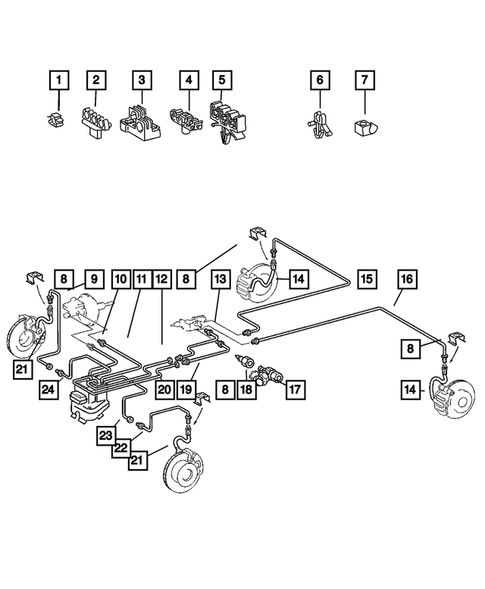

Brake Lines and Hoses for 2004 Dodge Sprinter 2500 #0

Brake Lines and Hoses for 2004 Dodge Sprinter 2500 #1

Brake Lines and Hoses for 2004 Dodge Sprinter 2500 #0

1

10

11

12

13

14

14

15

16

17

18

2

20

22

23

3

4

5

6

7

8

8

8

8

9

No.

Part # / Description / Price

Price

N/A

5098485AA - Service Brakes: Brake Line Repair Union for Chrysler: Crossfire | Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Line Repair Union

Mopar

Mopar

1

5119689AA - Service Brakes: Brake Line Clip, As Required for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Line Clip

Mopar

Mopar

Description: Brake Line Holder.

2

5135743AA - Service Brakes: Brake Line Clip, As Required for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Line Clip, As Required

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

2

5132788AA - Service Brakes: Brake Line Clip, As Required for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Line Clip, As Required

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

3

5119331AA - Service Brakes: Brake Tube Bracket, As Required for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube Bracket, As Required

Mopar

Mopar

4

5119330AA - Service Brakes: Brake Line Clip, As Required for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Line Clip, As Required

Mopar

Mopar

5

5119328AA - Service Brakes: Brake Line Clip, As Required for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Line Clip, As Required

Mopar

Mopar

6

5119329AA - Service Brakes: Brake Line Clip, As Required for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Line Clip

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Brake Line Holder.

7

5125566AA - Service Brakes: Brake Line Clip, As Required for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Line Clip, As Required

Mopar

Mopar

8

5098140AA - Service Brakes: Spring Clip, Right Or Left for Chrysler: Crossfire | Dodge: Sprinter 2500, Sprinter 3500 Image

Spring Clip

Mopar

Mopar

Description: Brake Hose To Bracket. Front or Rear.

9

5119163AA - Service Brakes: Brake Tube, Right for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Right

Mopar

Mopar

9

5119198AA - Service Brakes: Brake Tube, Right for Dodge: Sprinter 2500 Image

Brake Tube, Right

Mopar

Mopar

Description: [bgk,bnb].

10

5129153AA - Service Brakes: Brake Tube for Dodge: Sprinter 2500 Image

Brake Tube

Mopar

Mopar

Description: [bnb+bgk].

10

5119218AA - Service Brakes: Brake Tube, Secondary for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Secondary

Mopar

Mopar

10

5119217AA - Service Brakes: Brake Tube, Secondary for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Secondary

Mopar

Mopar

Description: [bgk,3s6].

10

5119220AA - Service Brakes: Brake Tube, Secondary for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Secondary

Mopar

Mopar

Description: [bgk,3s6].

11

5119219AA - Service Brakes: Brake Tube, Primary for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Primary

Mopar

Mopar

Description: [bgk,3s6].

11

5129157AA - Service Brakes: Brake Tube for Dodge: Sprinter 2500 Image

Brake Tube

Mopar

Mopar

Description: [bnb+bnb].

12

5119197AA - Service Brakes: Brake Tube, Right Rear for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Right Rear

Mopar

Mopar

13

5133728AA - Service Brakes: Brake Tube for Dodge: Sprinter 2500 Image

Brake Tube

Mopar

Mopar

Description: [+5nz].

13

5133710AA - Service Brakes: Brake Tube for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube

Mopar

Mopar

Description: [+5nz].

13

5133709AA - Service Brakes: Brake Tube for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [+5nz]. [+bgk].

13

5133728AB - Service Brakes: Brake Tube for Dodge: Sprinter 2500 Image

Brake Tube

Mopar

Mopar

Description: [+5nz].

13

5133709AB - Service Brakes: Brake Tube for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: [+5nz]. [+bgk].

13

5133704AA - Service Brakes: Brake Tube for Chrysler: Crossfire | Dodge: Sprinter 2500 Image

Brake Tube

Mopar

Mopar

Description: [+bgk].

13

5133710AB - Service Brakes: Brake Tube for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube

Mopar

Mopar

Description: [+5nz].

14

68549313AA - Service Brakes: Brake Hose, Right Or Left for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Hose

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Front. Rear.

14

5104087AA - Service Brakes: Brake Hose, Right Or Left for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Hose

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Front. Rear.

15

5133731AB - Service Brakes: Brake Tube, Right for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Right

Mopar

Mopar

Description: From Separation Point To Right Rear Axle / See Note. [+5nz].

15

5133731AA - Service Brakes: Brake Tube, Right for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Right

Mopar

Mopar

Description: Separation Point To Rear Axle. [+5nz].

15

5133712AB - Service Brakes: Brake Tube, Right for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Right Rear

Mopar

Mopar

Description: [-5nz].

15

5133712AA - Service Brakes: Brake Tube, Right for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Right Rear

Mopar

Mopar

Description: [-5nz].

16

5133729AA - Service Brakes: Brake Tube, Left for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Right

Mopar

Mopar

Description: Separation Point To Rear Axle. [+5nz].

16

5133708AB - Service Brakes: Brake Tube, Left for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Right

Mopar

Mopar

Description: [bgk,3s6]. [bgk,bnb].

16

5133732AA - Service Brakes: Brake Tube, Left for Dodge: Sprinter 2500 Image

Brake Tube, Left

Mopar

Mopar

Description: [-5nz].

16

5133708AA - Service Brakes: Brake Tube, Left for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Right

Mopar

Mopar

Description: [bgk,3s6]. [bgk,bnb].

16

5133732AB - Service Brakes: Brake Tube, Left for Dodge: Sprinter 2500 Image

Brake Tube, Left

Mopar

Mopar

Description: [-5nz].

16

5133729AB - Service Brakes: Brake Tube, Left for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Right

Mopar

Mopar

Description: Separation Point To Rear Axle. [+5nz].

17

5103640AA - Service Brakes: Master Cylinder Test Connection for Dodge: Sprinter 2500, Sprinter 3500 Image

Master Cylinder Test Connection

Mopar

Mopar

Description: M16x80x5.

18

5103636AA - Service Brakes: Orifice Fitting for Dodge: Sprinter 2500, Sprinter 3500 Image

Orifice Fitting

Mopar

Mopar

20

5119196AA - Service Brakes: Brake Tube, Left Rear for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Left Rear

Mopar

Mopar

22

5119160AA - Service Brakes: Brake Tube, Left for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Left

Mopar

Mopar

22

5119185AA - Service Brakes: Brake Tube, Left for Dodge: Sprinter 2500 Image

Brake Tube, Left

Mopar

Mopar

Description: [bgk,bnb].

23

5133706AA - Service Brakes: Brake Tube, Left for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Left

Mopar

Mopar

23

5133706AB - Service Brakes: Brake Tube, Left for Dodge: Sprinter 2500, Sprinter 3500 Image

Brake Tube, Left

Mopar

Mopar

No.

Part # / Description / Price

Price

1

5097684AA - Service Brakes: Nut for Chrysler: Crossfire | Dodge: Sprinter 2500, Sprinter 3500 Image

Nut

Mopar

Mopar

Notes: Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

Description: Convertible. From Pitman Arm to Steering Bracket. Steering Shock Absorber.

3

5126244AA - Service Brakes: Retaining Clip for Dodge: Sprinter 2500, Sprinter 3500 Image

Retaining Clip

Mopar

Mopar

4

5133725AA - Service Brakes: Washer for Dodge: Sprinter 2500, Sprinter 3500 Image

Washer

Mopar

Mopar

5

5096550AA - Service Brakes: Pedal Shaft Bushing for Chrysler: Crossfire | Dodge: Sprinter 2500, Sprinter 3500 Image

Pedal Shaft Bushing

Mopar

Mopar

6

5119337AA - Service Brakes: Load Sensing Lever for Dodge: Sprinter 2500, Sprinter 3500 Image

Load Sensing Lever

Mopar

Mopar

7

5097685AA - Service Brakes: Hex Nut for Chrysler: Crossfire | Dodge: Sprinter 2500, Sprinter 3500 Image

Hex Nut

Mopar

Mopar

8

5118723AA - Service Brakes: Bushing for Dodge: Sprinter 2500, Sprinter 3500 Image

Bushing

Mopar

Mopar

8

5103920AA - Service Brakes: Bushing for Dodge: Sprinter 2500, Sprinter 3500 Image

Load Sensing Link

Mopar

Mopar

Description: Sensor To Rear Axle. With [lm2 or lm3].

MSRP $30.00

$21.89

MSRP $30.00

$21.89

10

5133722AA - Service Brakes: Load Sensing Lever Spring for Dodge: Sprinter 2500, Sprinter 3500 Image

Load Sensing Lever Spring

Mopar

Mopar

11

5133723AA - Service Brakes: Load Sensing Adjustment Screw for Dodge: Sprinter 2500, Sprinter 3500 Image

Load Sensing Adjustment Screw

Mopar

Mopar

12

5133724AA - Service Brakes: Bolt for Dodge: Sprinter 2500, Sprinter 3500 Image

Bolt

Mopar

Mopar

Description: M8.

13

5104613AA - Service Brakes: Washer for Chrysler: Crossfire | Dodge: Sprinter 2500, Sprinter 3500 Image

Washer

Mopar

Mopar

Notes: Engines: 2.7L I5 TURBO DIESEL ENGINE. Transmissions: 5-SPEED AUTO W5A380 TRANSMISSION.

14

5103824AA - Service Brakes: Load Sensing Valve for Dodge: Sprinter 2500, Sprinter 3500 Image

Load Sensing Valve

Mopar

Mopar

15

5133720AA - Service Brakes: Load Sensing Valve Spring for Dodge: Sprinter 2500, Sprinter 3500 Image

Load Sensing Valve Spring

Mopar

Mopar
