Home 2001 Dodge Dakota Sport 5.9L V8 - Gas Gear Train

Gear Train for 2001 Dodge Dakota

Gear Train for 2001 Dodge Dakota #0

Gear Train for 2001 Dodge Dakota #1

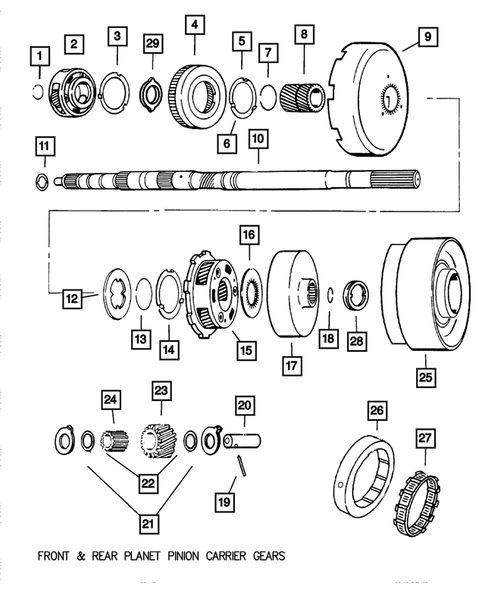

Gear Train for 2001 Dodge Dakota #2

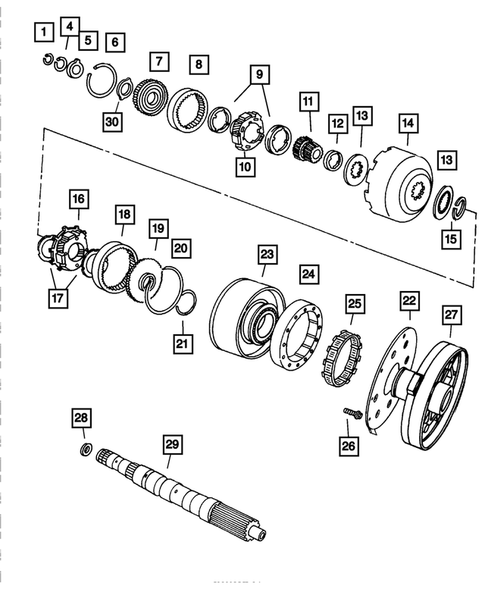

Gear Train for 2001 Dodge Dakota #3

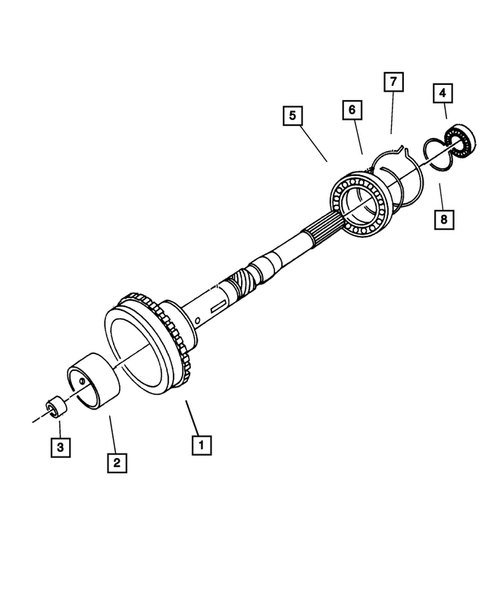

Gear Train for 2001 Dodge Dakota #4

Gear Train for 2001 Dodge Dakota #5

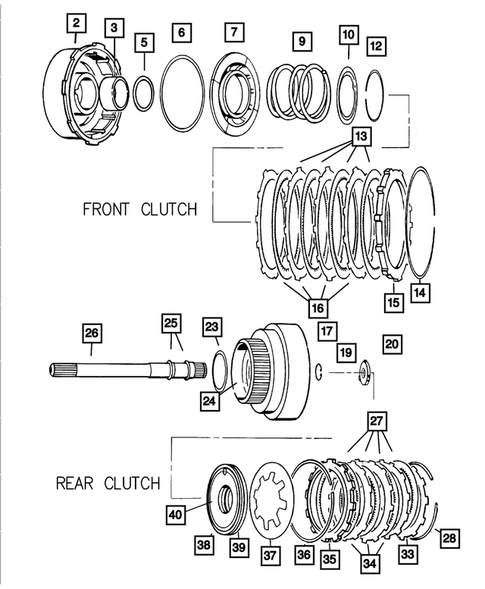

Gear Train for 2001 Dodge Dakota #0

10

12

13

14

15

16

17

19

2

20

23

24

25

26

27

28

3

34

35

36

37

38

39

40

5

6

7

9

No.

Part # / Description / Price

Price

N/A

4539124 - Automatic Transmission 4 Speed: Rear Clutch Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Rear Clutch Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: .107.

N/A

4505187 - Automatic Transmission 4 Speed: Output Shaft Thrust Washer for Dodge: Dakota | Jeep: Grand Cherokee, Wrangler Image

Output Shaft Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: Green .083.

N/A

147483 - Automatic Transmission 4 Speed: Check Ball for Chrysler: Voyager | Dodge: Caravan, Dakota, Durango, Neon, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Check Ball

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Transmission Front Clutch Retainer Check Valve. Dia-.187. 3/16" Diameter. Transmission Over Drive Clutch Piston Check Valve.

N/A

4505186 - Automatic Transmission 4 Speed: Output Shaft Thrust Washer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Output Shaft Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Red .068. Intermediate Shaft, Thrust, with 3 Point Bronze Face, .068" Thk.

N/A

4539122 - Automatic Transmission 4 Speed: Rear Clutch Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Rear Clutch Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: .098.

N/A

4617159 - Automatic Transmission 4 Speed: Rear Clutch Bushing for Dodge: Dakota | Jeep: Grand Cherokee, Wrangler Image

Rear Clutch Bushing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

N/A

5252926AB - Automatic Transmission 4 Speed: Transmission Clutch Seal Package for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Transmission Clutch Seal Package

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

N/A

4539121 - Automatic Transmission 4 Speed: Rear Clutch Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Rear Clutch Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: .076.

N/A

4539123 - Automatic Transmission 4 Speed: Rear Clutch Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Rear Clutch Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: .095.

2

RL617405AD - Automatic Transmission 4 Speed: Transmission Front Clutch Retainer And Bushing for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Transmission Front Clutch Retainer And Bushing ¹

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: NONE

3

4617157 - Automatic Transmission 4 Speed: Front Clutch Bushing, Front for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Front Clutch Bushing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

5

3515176 - Automatic Transmission 4 Speed: Front Clutch Piston Seal for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Front Clutch Piston Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

5

52852923AA - Automatic Transmission 4 Speed: Front Clutch Piston Seal for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Front Clutch Piston Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

6

4058487AB - Automatic Transmission 4 Speed: Front Piston Clutch Seal for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Front Piston Clutch Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

6

52852925AA - Automatic Transmission 4 Speed: Front Piston Clutch Seal for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Front Piston Clutch Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

7

4617154AB - Automatic Transmission 4 Speed: Clutch Piston for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Clutch Piston

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

9

3515054 - Automatic Transmission 4 Speed: Front Clutch Spring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Front Clutch Spring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

10

4617516AC - Automatic Transmission 4 Speed: Transmission Front Clutch Piston Spring Retainer for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Transmission Front Clutch Piston Spring Retainer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

12

1942400 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: ~

13

4617362 - Automatic Transmission 4 Speed: Direct Clutch Disc for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Direct Clutch Disc

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

14

3410571 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: ~

15

4617176 - Automatic Transmission 4 Speed: Transmission Clutch Reaction Plate for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Wrangler Image

Transmission Clutch Reaction Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

15

4617176AB - Automatic Transmission 4 Speed: Transmission Clutch Reaction Plate for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Transmission Clutch Reaction Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

16

1942403AC - Automatic Transmission 4 Speed: Clutch Separator Plate for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Clutch Separator Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: With [V] Notch.

17

4505199 - Automatic Transmission 4 Speed: Transmission Rear Clutch Retainer for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Transmission Rear Clutch Retainer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

19

6022859 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: .890625.

20

4505185 - Automatic Transmission 4 Speed: Output Shaft Thrust Washer for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Output Shaft Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: Gray .052.

23

4617786 - Automatic Transmission 4 Speed: Front Clutch Thrust Washer for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Front Clutch Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: .060`` Thick.

24

4028333 - Automatic Transmission 4 Speed: Rear Clutch Seal for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Rear Clutch Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: 1.50 ODx.009 Thk.

25

1401221AB - Automatic Transmission 4 Speed: Input Shaft Seal for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Input Shaft Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: INPUT SHAFT

26

4505189 - Automatic Transmission 4 Speed: Transmission Input Shaft for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Transmission Input Shaft

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

27

4713880 - Automatic Transmission 4 Speed: Clutch Disc for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Clutch Disc

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

28

4130761 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: .060`` Thick.

34

1942403AB - Automatic Transmission 4 Speed: Clutch Separator Plate for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Clutch Separator Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: Without [V] Notch.

35

2466281 - Automatic Transmission 4 Speed: Clutch Pressure Plate for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Clutch Pressure Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

36

2466283 - Automatic Transmission 4 Speed: Rear Clutch Spring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Rear Clutch Spring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

37

4617191 - Automatic Transmission 4 Speed: Rear Clutch Piston Spring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Rear Clutch Piston Spring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

37

4728487 - Automatic Transmission 4 Speed: Rear Clutch Piston Spring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Rear Clutch Piston Spring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

38

2538695 - Automatic Transmission 4 Speed: Rear Clutch Piston Seal for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Rear Clutch Piston Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

39

3515716 - Automatic Transmission 4 Speed: Clutch Piston for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Clutch Piston

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

40

2538510 - Automatic Transmission 4 Speed: Rear Clutch Piston Seal for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Rear Clutch Piston Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: ~

¹ This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

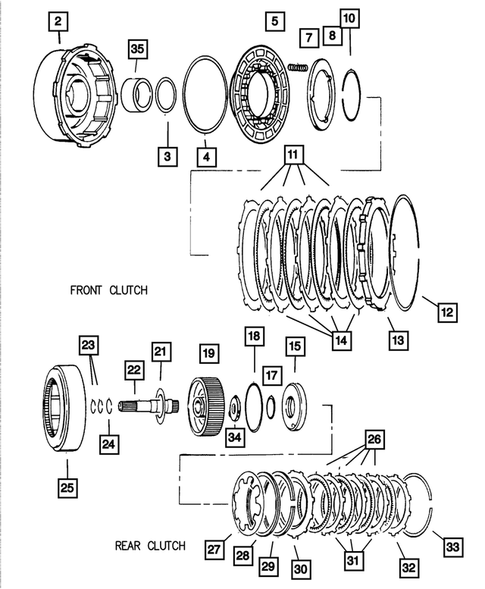

Gear Train for 2001 Dodge Dakota #1

10

11

12

13

14

15

17

18

19

2

21

22

23

25

26

27

28

29

3

30

31

33

34

35

4

5

7

8

No.

Part # / Description / Price

Price

N/A

147483 - Automatic Transmission 4 Speed: Check Ball for Chrysler: Voyager | Dodge: Caravan, Dakota, Durango, Neon, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Check Ball

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Transmission Front Clutch Retainer Check Valve. Dia-.187. 3/16" Diameter. Transmission Over Drive Clutch Piston Check Valve.

N/A

4058443 - Automatic Transmission 4 Speed: Rear Clutch Retainer Seal for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Rear Clutch Retainer Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Piston Retainer Oil Seal Lock, 1-7/8" O.D.

N/A

4637078AB - Automatic Transmission 4 Speed: Transmission Clutch Seal Package for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Transmission Clutch Seal Package

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: [4637078ab also for an1].

N/A

4637078 - Automatic Transmission 4 Speed: Transmission Clutch Seal Package for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Transmission Clutch Seal Package

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

2

4058437AB - Automatic Transmission 4 Speed: Clutch Retainer for Dodge: Dakota, Durango, Ram 2500, Ram 3500 Image

Clutch Retainer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

2

5072862AB - Automatic Transmission 4 Speed: Clutch Retainer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Front Clutch Retainer Package

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

3

52852922AA - Automatic Transmission 4 Speed: Front Clutch Piston Seal for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Front Clutch Piston Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front Clutch Piston, Inner.

4

4058484 - Automatic Transmission 4 Speed: Front Piston Clutch Seal for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Front Piston Clutch Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front Clutch Piston, Outer.

4

52852924AA - Automatic Transmission 4 Speed: Front Piston Clutch Seal for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Front Piston Clutch Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front Clutch Piston, Outer.

5

2464651AE - Automatic Transmission 4 Speed: Clutch Piston for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Clutch Piston

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: CLUTCH

7

4617205 - Automatic Transmission 4 Speed: Front Clutch Spring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Front Clutch Spring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

8

2801949 - Automatic Transmission 4 Speed: Transmission Retainer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Transmission Retainer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front. Clutch Piston Spring.

10

2124872 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rr. Clutch Piston Retainer, .060" Thk., 1-31/64" O.D. Rear Clutch Piston Retainer, .060" Thick, 1-31/64".

10

2124824 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Frt. Clutch, Inner, .060" Thk., 3" I.D. Front Clutch, Inner, .060" Thick, 3" I.D.

11

2124826AB - Automatic Transmission 4 Speed: Clutch Separator Plate for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Clutch Separator Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

12

3410570 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Frt. Clutch, .050" Thk., 7-8/64" O.D. Front Clutch, .050" Thick, 7-8/64" O.D.

13

4617567 - Automatic Transmission 4 Speed: Transmission Clutch Reaction Plate for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Transmission Clutch Reaction Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rear. Clutch Reactioin. Front, Clutch Reaction.

14

4617201AB - Automatic Transmission 4 Speed: Direct Clutch Disc for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Direct Clutch Disc

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

15

3743624AB - Automatic Transmission 4 Speed: Clutch Piston for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Clutch Piston

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

17

1942054 - Automatic Transmission 4 Speed: Rear Clutch Piston Seal for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Rear Clutch Piston Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rear Clutch Piston, Inner.

18

2124835 - Automatic Transmission 4 Speed: Rear Clutch Piston Seal for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Rear Clutch Piston Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rear. Clutch Piston, Outer.

19

4617855 - Automatic Transmission 4 Speed: Transmission Retainer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Transmission Retainer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rear Clutch Piston.

19

4617855AB - Automatic Transmission 4 Speed: Transmission Retainer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Transmission Retainer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rear Clutch Piston.

21

4617161 - Automatic Transmission 4 Speed: Front Clutch Thrust Washer, Rear for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Front Clutch Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: [0.062`]. Front. Clutch Thrust, Rear. [.062` Thick].

22

4617396 - Automatic Transmission 4 Speed: Transmission Input Shaft for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Transmission Input Shaft

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Input.

23

4617418AC - Automatic Transmission 4 Speed: Input Shaft Seal for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Input Shaft Seal

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: INPUT SHAFT

25

52854149AA - Automatic Transmission 4 Speed: Rear Clutch Retainer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Rear Clutch Retainer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

25

3743622 - Automatic Transmission 4 Speed: Rear Clutch Retainer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Rear Clutch Retainer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

26

2801992AC - Automatic Transmission 4 Speed: Clutch Disc for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Clutch Disc

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

26

2801992AB - Automatic Transmission 4 Speed: Clutch Disc for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Clutch Disc

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

27

3743621AB - Automatic Transmission 4 Speed: Rear Clutch Piston Spring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Rear Clutch Piston Spring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

28

3515077 - Automatic Transmission 4 Speed: Rear Clutch Piston Spacer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Rear Clutch Piston Spacer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rr. Rear Clutch Piston Spring, Plastic, 6-13/16" O.D.

29

2466806 - Automatic Transmission 4 Speed: Rear Clutch Spring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Rear Clutch Spring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rear. Clutch Wave.

30

2466803 - Automatic Transmission 4 Speed: Clutch Pressure Plate for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Clutch Pressure Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rear. Clutch Pressure, Front.

31

52118812AA - Automatic Transmission 4 Speed: Clutch Separator Plate, Rear for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Clutch Separator Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

33

1942063AB - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: [.065``-.067`` Thick]. 0.060 Thick. [.060/.063].

34

4505186 - Automatic Transmission 4 Speed: Output Shaft Thrust Washer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Output Shaft Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Red .068. Intermediate Shaft, Thrust, with 3 Point Bronze Face, .068" Thk.

35

4058647 - Automatic Transmission 4 Speed: Front Clutch Bushing for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Front Clutch Bushing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Gear Train for 2001 Dodge Dakota #2

1

10

11

12

15

16

17

18

19

2

20

21

22

23

24

25

26

27

28

3

4

5

6

7

8

9

No.

Part # / Description / Price

Price

1

6024312 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Green [.062-.066]. 1.108 Free Diameter. .062``-.066`` Thick.

2

4539129 - Automatic Transmission 4 Speed: Planetary Pinion Carrier for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Planetary Carrier Thrust Washer, Front

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: 5 tabs.

2

52118693 - Automatic Transmission 4 Speed: Planetary Pinion Carrier for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Planetary Pinion Carrier

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

2

5189401AA - Automatic Transmission 4 Speed: Planetary Pinion Carrier for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Planetary Pinion Carrier

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

3

2801060 - Automatic Transmission 4 Speed: Planetary Carrier Thrust Washer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Planetary Carrier Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rear, with 4Tabs , 3 13/32` O.D. Rear, with 4 Tabs, 3-13/32".

4

2892656 - Automatic Transmission 4 Speed: Front Annulus Gear for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Front Annulus Gear

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: With Support 2-1/2" I.D. WIth Support 2.5` Diameter Center Hole.

4

68019267AB - Automatic Transmission 4 Speed: Front Annulus Gear for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Gear Pkg

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: With Support 2-1/2" I.D. WIth Support 2.5` Diameter Center Hole.

5

4617888 - Automatic Transmission 4 Speed: Planetary Carrier Thrust Washer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Planetary Carrier Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: 4 Tabs. 4 Tab.

6

52854263AA - Automatic Transmission 4 Speed: Washer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: 6 Tabs.

6

4618000 - Automatic Transmission 4 Speed: Washer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: 6 Tabs.

7

1736521 - Automatic Transmission 4 Speed: Sun Gear Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Sun Gear Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Driving Shell Lock.

8

2801311 - Automatic Transmission 4 Speed: Sun Gear for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Sun Gear

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: With Bushing.

9

4617978 - Automatic Transmission 4 Speed: Sun Gear Shell for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Sun Gear Shell

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Driving.

10

4617611 - Automatic Transmission 4 Speed: Transmission Intermediate Shaft for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Transmission Intermediate Shaft

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: With Plug.

11

4505188 - Automatic Transmission 4 Speed: Transmission Module Plate for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Transmission Module Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: [.060]` Thick.

12

1942080 - Automatic Transmission 4 Speed: Sun Gear Driving Shell Plate for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Sun Gear Driving Shell Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: 4 Inside Thongsd. Thrust, with 4 Inside Tongs. With 4 Inside Thongs.

15

2801061AB - Automatic Transmission 4 Speed: Planetary Pinion Carrier for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Planetary Pinion Carrier

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

16

2400580 - Automatic Transmission 4 Speed: Annulus Gear Thrust Plate for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Annulus Gear Thrust Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Rear Annulus Gear Thrust, with 31 Inside Teeth, 3-23/64". With 31 Inside Teeth, [3 23/64]` O.D.

17

4810002AC - Automatic Transmission 4 Speed: Rear Annulus Gear for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Rear Annulus Gear

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: REAR ANNULUS

18

6033591 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Reverse Drum Retaining.

19

6024666 - Automatic Transmission 4 Speed: Dowel for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Dowel, Front

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: .108x1.00. Front.

20

4428223 - Automatic Transmission 4 Speed: Planetary Shaft for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Planetary Shaft

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front.

21

2801315 - Automatic Transmission 4 Speed: Planetary Carrier Thrust Washer, Front And Rear for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Planetary Carrier Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front.

22

2204649 - Automatic Transmission 4 Speed: Planet Pinion Thrust Washer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Planet Pinion Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front.

23

2400667 - Automatic Transmission 4 Speed: Transmission Planetary Pinion for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Transmission Planetary Pinion

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front.

24

4800687AA - Automatic Transmission 4 Speed: Front And Rear Pinion Roller for Chrysler: 300, 300M, Concorde, Pacifica, PT Cruiser, Sebring, Town & Country, Voyager | Dodge: Caravan, Charger, Dakota, Durango, Grand Caravan, Intrepid, Magnum, Neon, Nitro, Ram 1500, Ram 2500, Ram 3500, Stratus | Jeep: Liberty, Wrangler Image

Pinion Roller

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front.

25

52118057 - Automatic Transmission 4 Speed: Automatic Transmission Drum for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Automatic Transmission Drum

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: With Race, Reverse.

26

4471473 - Automatic Transmission 4 Speed: Overrunning Clutch Cam for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Overrunning Clutch Cam

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: 14 Cam Lobes.

27

4617199 - Automatic Transmission 4 Speed: Overrunning Clutch for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Overrunning Clutch

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: 14 Rollers Nylon Caged, "O".

28

52118059 - Automatic Transmission 4 Speed: Reverse Drum Thrust Washer for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Reverse Drum Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Gear Train for 2001 Dodge Dakota #3

1

10

11

12

13

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

4

5

6

7

8

9

No.

Part # / Description / Price

Price

N/A

6030404 - Automatic Transmission 4 Speed: Output Shaft Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Output Shaft Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: 1.029 od.

N/A

6030938 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: ~

1

6026289 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: .946 id.

4

6030576 - Automatic Transmission 4 Speed: Annulus Gear Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Annulus Gear Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: POWER STEERING PUMP END

5

3681969 - Automatic Transmission 4 Speed: Annulus Gear Thrust Washer for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Annulus Gear Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

6

6035238 - Automatic Transmission 4 Speed: Snap Ring for Chrysler: 200, 300, 300M, Concorde, Pacifica, PT Cruiser, Sebring, Town & Country, Voyager | Dodge: Avenger, Caravan, Challenger, Charger, Dakota, Durango, Grand Caravan, Intrepid, Journey, Magnum, Neon, Nitro, Ram 1500, Ram 2500, Ram 3500, Stratus | Jeep: Liberty, Wrangler | Ram: 1500, C/V, Dakota, ProMaster 1500, ProMaster 2500, ProMaster 3500 Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

MSRP $7.00

$5.10

MSRP $7.00

$5.10

7

4617774 - Automatic Transmission 4 Speed: Annulus Gear Support for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Annulus Gear Support

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

8

4130512 - Automatic Transmission 4 Speed: Front Annulus Gear for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Front Annulus Gear

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

9

4130518 - Automatic Transmission 4 Speed: Planetary Carrier Thrust Washer for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Planetary Carrier Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

10

4130514 - Automatic Transmission 4 Speed: Planetary Pinion Carrier for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Planetary Pinion Carrier

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

11

4130685 - Automatic Transmission 4 Speed: Sun Gear for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Sun Gear

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

12

4130736 - Automatic Transmission 4 Speed: Sun Gear Spacer for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Sun Gear Spacer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

13

4471566 - Automatic Transmission 4 Speed: Transmission Module Plate for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Transmission Module Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

14

4531288 - Automatic Transmission 4 Speed: Sun Gear Shell for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Sun Gear Shell

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

15

1942439 - Automatic Transmission 4 Speed: Sun Gear Shell Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Sun Gear Shell Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: ~

16

4431438 - Automatic Transmission 4 Speed: Planetary Pinion Carrier for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Planetary Pinion Carrier

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

17

3681935 - Automatic Transmission 4 Speed: Planetary Carrier Thrust Washer for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Planetary Carrier Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

18

3743184 - Automatic Transmission 4 Speed: Rear Annulus Gear for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Rear Annulus Gear

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

19

3515501 - Automatic Transmission 4 Speed: Annulus Gear Support for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Annulus Gear Support

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

20

1942444 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: ~

21

6033480 - Automatic Transmission 4 Speed: Reverse Drum Snap Ring for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Reverse Drum Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

22

4471565 - Automatic Transmission 4 Speed: Overdrive Piston Retainer Gasket for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Overdrive Piston Retainer Gasket

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.

22

4471564 - Automatic Transmission 4 Speed: Overdrive Piston Retainer Gasket for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Overdrive Piston Retainer Gasket

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

23

4637956 - Automatic Transmission 4 Speed: Transmission Drum Package for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Transmission Drum Package

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

24

4431690 - Automatic Transmission 4 Speed: Overrunning Clutch Cam for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Overrunning Clutch Cam

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

25

4431432 - Automatic Transmission 4 Speed: Overrunning Clutch for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Overrunning Clutch

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

26

6033616 - Automatic Transmission 4 Speed: Hex Flange Head Screw for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Hex Flange Head Screw

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Description: .25-28x.875.

27

4617246 - Automatic Transmission 4 Speed: Transmission Overdrive Clutch Piston Retainer for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Transmission Overdrive Clutch Piston Retainer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

28

4505188 - Automatic Transmission 4 Speed: Transmission Module Plate for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Transmission Module Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: [.060]` Thick.

29

4617604 - Automatic Transmission 4 Speed: Transmission Intermediate Shaft for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Transmission Intermediate Shaft

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

30

4617775 - Automatic Transmission 4 Speed: Annulus Gear Thrust Plate for Dodge: Dakota, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Wrangler Image

Annulus Gear Thrust Plate

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION.

Gear Train for 2001 Dodge Dakota #4

1

4

6

7

8

No.

Part # / Description / Price

Price

1

5003232AA - Automatic Transmission 4 Speed: Output Shaft for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Output Shaft

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Shaft and Bushings.

1

4798536 - Automatic Transmission 4 Speed: Output Shaft for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Output Shaft

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

4

4461008 - Automatic Transmission 4 Speed: Output Shaft Bearing for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Output Shaft Bearing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front.

6

4461068 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Retainer snap ring for output shaft bearing.

7

4461057 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

8

4461069 - Automatic Transmission 4 Speed: Snap Ring for Chrysler: Aspen | Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Commander, Grand Cherokee, Liberty | Ram: 1500, 1500 Classic, 2500, 3500, Dakota Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.

Description: Rear.

MSRP $11.55

$8.43

MSRP $11.55

$8.43

Gear Train for 2001 Dodge Dakota #5

2

3

4

5

6

7

No.

Part # / Description / Price

Price

2

5003232AA - Automatic Transmission 4 Speed: Output Shaft for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Output Shaft

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Shaft and Bushings.

3

4461008 - Automatic Transmission 4 Speed: Output Shaft Bearing for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Output Shaft Bearing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Front.

4

4461068 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

Description: Retainer snap ring for output shaft bearing.

5

4461057 - Automatic Transmission 4 Speed: Snap Ring for Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION.

6

4461069 - Automatic Transmission 4 Speed: Snap Ring for Chrysler: Aspen | Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Commander, Grand Cherokee, Liberty | Ram: 1500, 1500 Classic, 2500, 3500, Dakota Image

Snap Ring

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.

Description: Rear.

MSRP $11.55

$8.43

MSRP $11.55

$8.43

7

2466224 - Automatic Transmission 4 Speed: Output Shaft Bearing for Chrysler: Aspen | Dodge: Dakota, Durango, Ram 1500, Ram 2500, Ram 3500 | Jeep: Grand Cherokee, Liberty | Ram: 1500, 2500, 3500, Dakota Image

Output Shaft Bearing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.

Description: 52105959aa. From 9/10/02. Rear.
